Electric Drift Go Kart Operations Maintenance and Smart Management System: A Complete Guide
Drift go-karts are thrilling and fun, but due to their frequent collisions on the track, it is inevitable that minor faults will appear over time. After a period of use, components like the chassis, brakes, and steering system can wear out or get damaged. Knowing how to properly repair and maintain your kart is essential for both safety and performance. By following professional maintenance procedures and replacing faulty parts in time, you can keep your go-kart running smoothly and avoid costly breakdowns later.

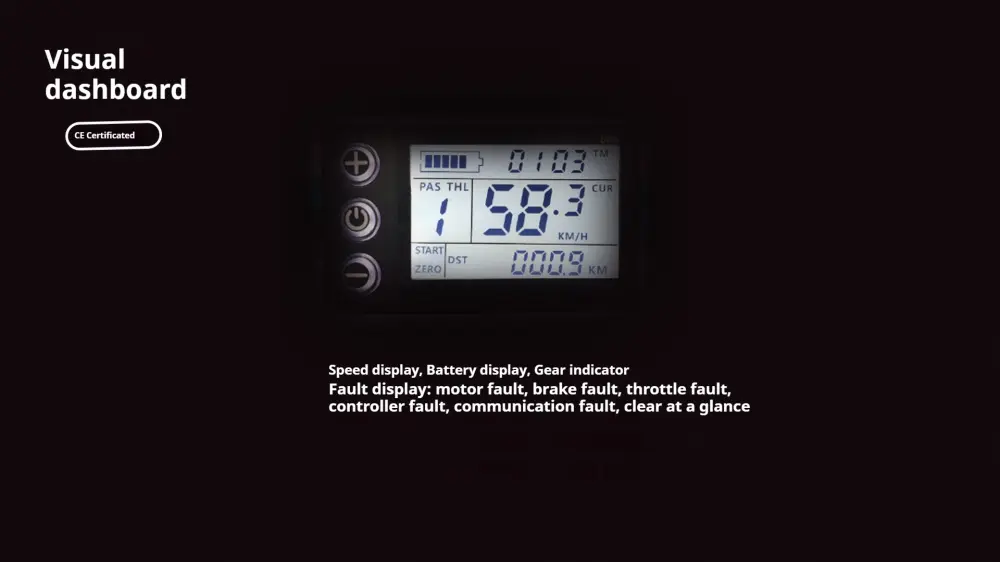

Karting Fault Detection and Error Code System
We have optimized the design for daily maintenance. Our Intelligent Monitoring Dashboard, which not only has the basic function of adjusting the gears and switching the speed mode from one to five gears according to the demand, but also monitors the running status of the vehicle in real time. Through the center button, the operator can switch to view different monitoring interfaces, in which “E” number is the key parameter, used to display fault monitoring code. When the system displays “E00”, it means that the go kart is normal, without fault, while “6”, ‘7’, “8” “9” “10” corresponds to the fault information of the throttle, brake, battery, motor, controller and other components. With a clear fault code, the maintenance work will no longer be blind, for example, when “E07” is displayed, it can be directly localized as a motor failure, so as to quickly arrange targeted maintenance.
In addition, we have also adopted clear wire markings in different colors on the vehicle wiring, which makes it easy to quickly locate and troubleshoot problems during maintenance, effectively improving maintenance efficiency and shortening downtime.
Fault visualization management brings the advantage of rapid troubleshooting with reduced impact on operations. Through the visualized fault detection management system, the operation personnel can grasp the vehicle status in real time and discover potential faults in time. The system will clearly show the specific problem areas by code or graphical interface, allowing maintenance personnel to quickly and accurately locate and solve the faults, avoiding the waste of manpower and maintenance delays caused by dismantling the whole vehicle.
This efficient visual diagnosis not only significantly shortens troubleshooting time and reduces downtime, but also reduces the impact on normal venue operations and customer experience, avoiding operational risks such as track congestion and long customer waiting time due to the inability to repair the vehicle in time, thus safeguarding the stable revenue and reputation of the karting hall.

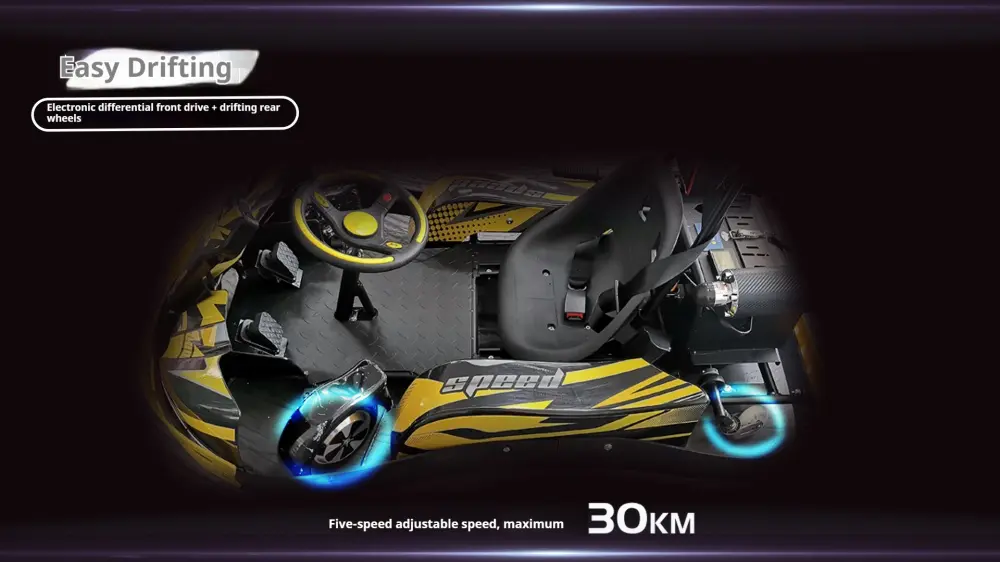

Five-Level Speed Adjustment for Diverse Users
5 gears of different speeds to meet the needs of different ages and driving levels, smaller children can play with the lower speed gears, teenagers or adults can use a higher grade, which not only ensures the safety, but also increase the driving fun.

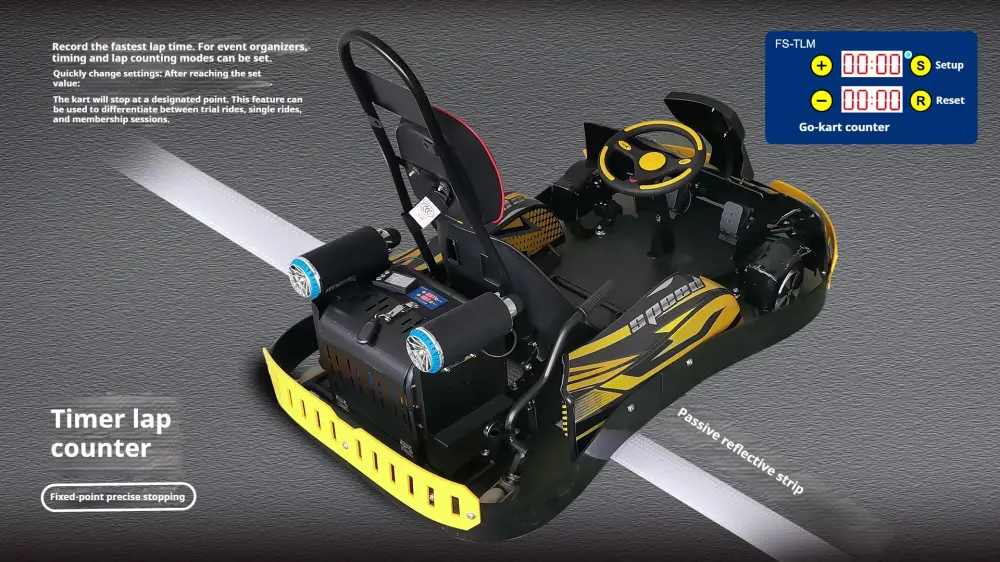

Advantages of advanced counter systems
Our counter system can operate in either timing mode or continuous lap counting mode. You can freely set any number of laps or any duration in the settings to suit your needs. The system consists of three main components: an infrared sensor, a reflective strip on the ground, and a control unit. The ground reflective strip serves to mark the start and finish lines.
Common weaknesses of timer-based counters
In timing mode, unlike many manufacturers whose karts stop immediately when time runs out—sometimes stopping in the middle of the track—our system requires the kart to pass the finish line before it can stop. Because the reflective strips mark the start and finish lines and the sensor detects them, even when time is up, the kart will continue until it reaches the finish line before stopping. This prevents karts from stopping midway and allows for precise stopping at the designated point, which is controlled by our reflective strips.
Optical sensors for precise stop detection
Our kart counter uses an optical sensor design to achieve precise stopping: the vehicle will only automatically stop once it truly reaches the finish line, ensuring safety, ease of operation, and reducing the need for manual intervention.
Additionally, the counter panel supports dual mode switching: Modes starting with E represent timing mode. Modes starting with A represent lap counting mode. Switching between E-mode (time-based) and A-mode (lap-based). Users can freely choose based on different operational needs, making the system more flexible and widely applicable.
Improving operational efficiency and safety
If unprofessional timing counters are used, vehicles may stop abruptly in the middle of the track once the timer runs out. This creates not only a significant safety risk but also blocks the track, preventing other customers from driving smoothly and causing long waiting lines. The more customers have to queue up, the more it disrupts the normal operations of the karting venue, potentially damaging its reputation and revenue.
By adopting our advanced timing system, you can greatly improve your operational efficiency, reduce the need for manual intervention, enhance the accuracy and safety of vehicle dispatching, and significantly lower the risk of accidents. This also helps create a smoother and more enjoyable customer experience, ultimately increasing repeat business and overall revenue.

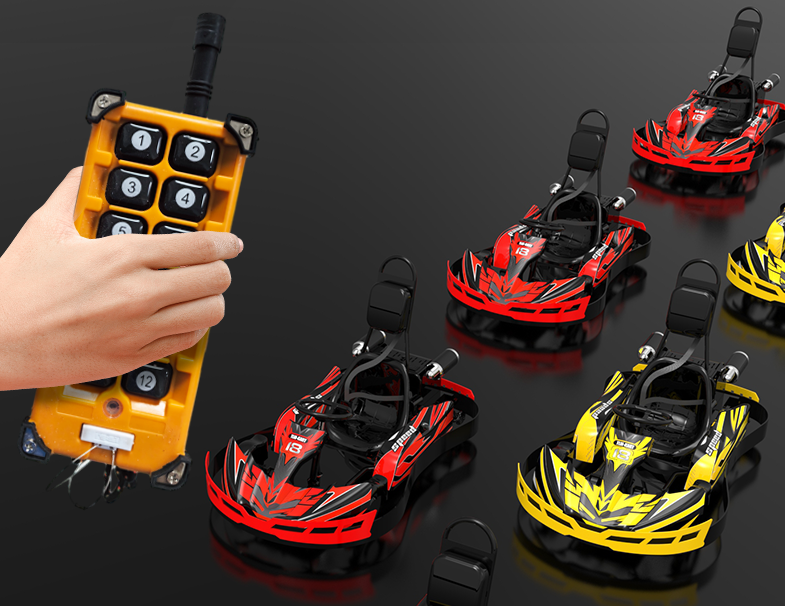

Remote Braking System for Enhanced Safety
1.Principle of Remote Brake Function |
The remote brake system is mainly connected to the vehicle controller through wireless signals, so that when the operator discovers an abnormal situation (such as speeding, intentional collision or loss of control of the vehicle), he/she can immediately send a brake command through the remote control. When the controller receives the command, it will immediately cut off the motor output and activate the electromagnetic brake or mechanical brake mechanism, causing the vehicle to decelerate rapidly until it stops. The advantage of this system is that even if the vehicle’s own control system is out of sync or malfunctioning, the operator can still achieve emergency stopping through remote intervention, to maximize the protection of the safety of personnel and equipment on the track.
2.Emergency braking under system unsynchronization
When the counter is unsynchronized with the system, or the communication is unstable, the remote brake can intervene in the control independently to improve the management flexibility.
3.Intervention against speeding or malicious collision
In actual use, some children drive too fast or even intentionally try to crash into other people, in which case the staff can immediately stop the vehicle through the remote control to prevent any danger. In addition, in the event of a vehicle breakdown or unexpected situation ahead, the operator can quickly press stop on the rear vehicle to prevent tailgating and confusion.
4.Preventing wrong braking and stopping on reflective tile floors
Preventing reflective tiles from mistakenly stopping the safety pocket, even on some smooth floors (such as tile floors), reflections cause the vehicle to misjudge or stop in the middle of the situation, the remote control brake can also play a role in the safety pocket, to enhance the reliability and safety of the overall operation.

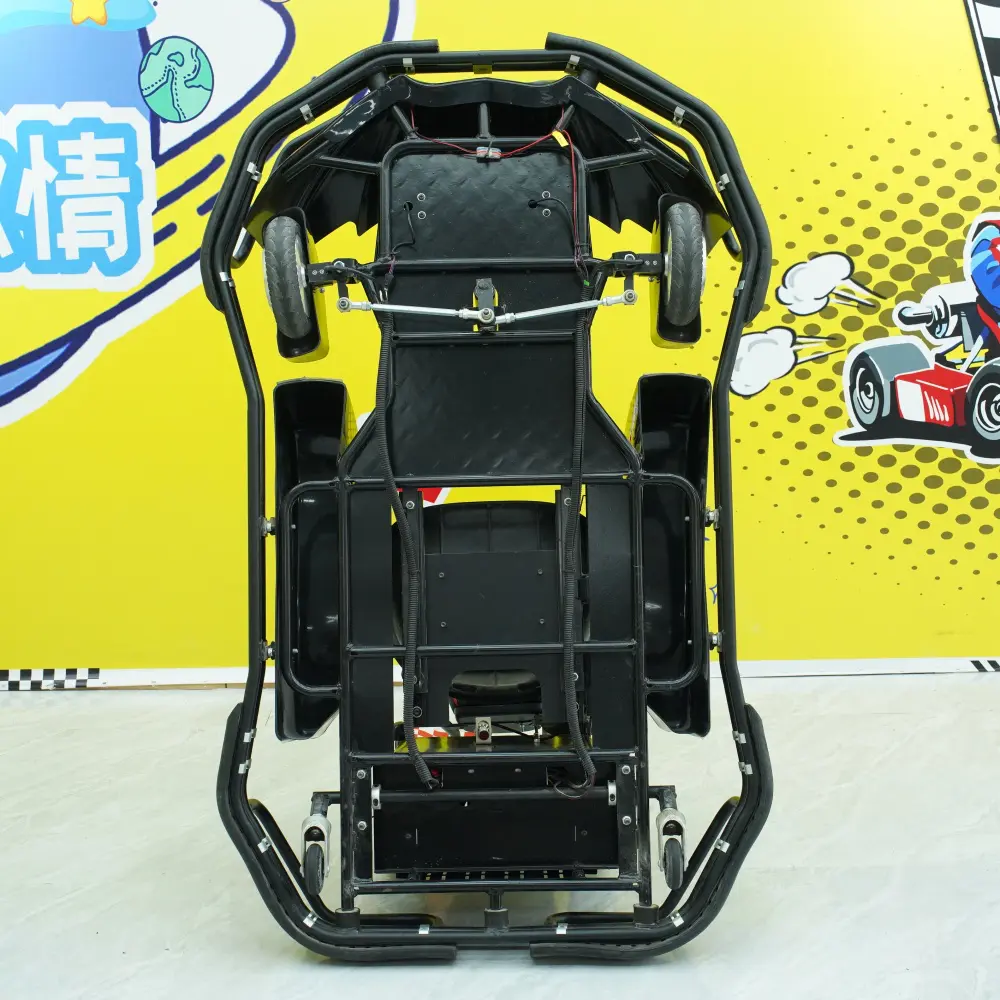

Line Markers and Maintenance-Friendly Wiring Design
The brake lines of many chassis on the market are directly linked to the controller, when repairing, you need to remove the entire line for repair, which is troublesome and wasteful of materials. Our chassis line is clean and tidy, and the modular design, in the brake, throttle line and other easy to wear the line at the increase of the line adapter, maintenance only need to remove the corresponding part of the adapter can be, convenient and quick, save materials, reduce the risk of large-scale dismantling of the line to save manpower and material resources. The parts corresponding to each line are labeled with their names in English, so that you can easily know which part corresponds to the line during maintenance, making it easier to repair.
Tire and Battery Configurations
Kart tires on the market are generally divided into solid tires and hollow tires, we use solid tires, and solid tires inside the wear-resistant tires, more durable, longer service life, lower maintenance costs. We have a customer wear-resistant tires used for two years, still can not change, can still be used normally.
High-capacity lithium battery setups
Many karts on the market still use the original lead-acid batteries, we use more high-end durable lithium batteries, usually 36V or 48V.
True capacity and reliable range
Our battery capacity of 12anh is already much higher than the 8anh of some manufacturers, and we are the real label, unlike some manufacturers in Zhejiang, they label 12anh battery, in fact, it is not up to it, we have bought and tested it, this kind of behavior is in order to reduce the cost of hundreds of dollars and make their prices look more competitive, in fact, it is a kind of deceptive behavior of consumers. This kind of behavior is to reduce the cost of a few hundred dollars, and make their prices look more competitive, in fact, it is a kind of deception of consumer behavior.
Battery quality assurance
Our battery from the beginning of our sales of electric go-karts, there has been no major after-sales problems, not like some of the manufacturers on the market to use cheap batteries, spontaneous combustion was burned carts, we use large manufacturers of big brands of lithium batteries, but also for the export of specially customized batteries, battery certificates of conformity, complete test reports, and each battery we also buy the insurance, to protect the safety and interests of customers.
Electronic Differential Technology
While most competitors on the market usually use only one motor, our kart uses two wheel motors and incorporates electronic differential technology. When the vehicle turns, the steering paths of the inner and outer wheels are different, with the outer wheel traveling a much greater distance than the inner wheel. If the two wheels rotate at the same speed, it will lead to serious tire friction, poor steering, and even steering wheel “beating” phenomenon. Our electronic differential system will intelligently control the rotational speed of the two motors through the program, so that it will be automatically adjusted according to the turning state, ensuring that the vehicle can smoothly and smoothly go through the corners, so that the children can drive more safely and more comfortably. Better than tricycle anti-rollover effect, enhance user driving experience and safety.
Conclusion: Building a Safe and Efficient Drift Car Operation
Karting cars are your most important production tool and not cost, you are going to use these cars to help you make money and they can be used for a long period of time after purchase, unlike rent and labor which cost you every month. If you want to open an open booking club, the main cost is in the rent and labor manpower cost, so it is recommended that you buy karts or buy higher quality cars in order to ensure smooth operation.
