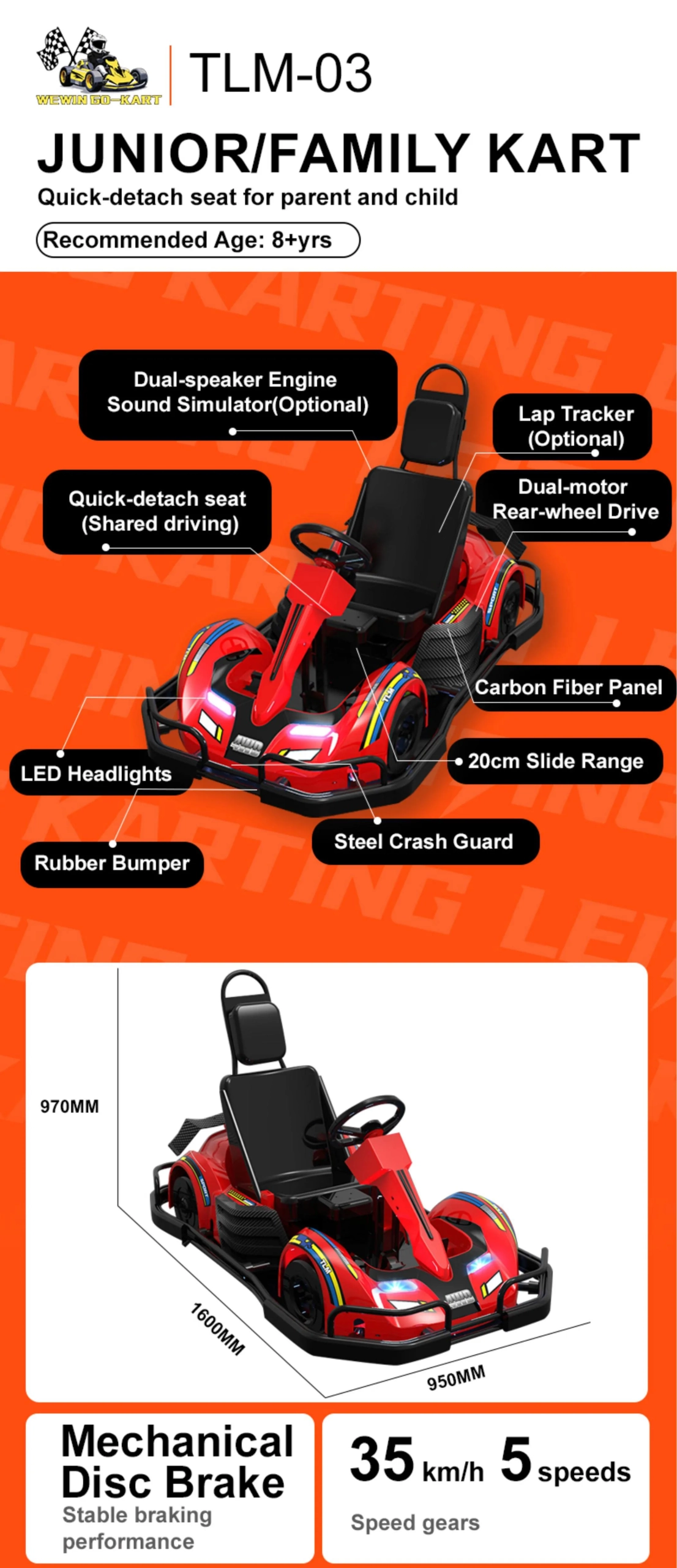

TLM-03 350W*2 Dual Hub Motors 48V 15Ah Lithium-ion Battery Indoor/outdoor Go Karts
Multi-purpose drift go kart designed for both kids and adults. Equipped with quick-release child seats and powered by a 48V lithium battery, it reaches speeds up to 35KM/H. Delivers strong torque and smooth control for thrilling karting and go cart drifting fun. Perfect for amusement parks, rental tracks, and family entertainment centers.
| Item | Description |
| Model | TLM-03 Big Bull Drift Kart |

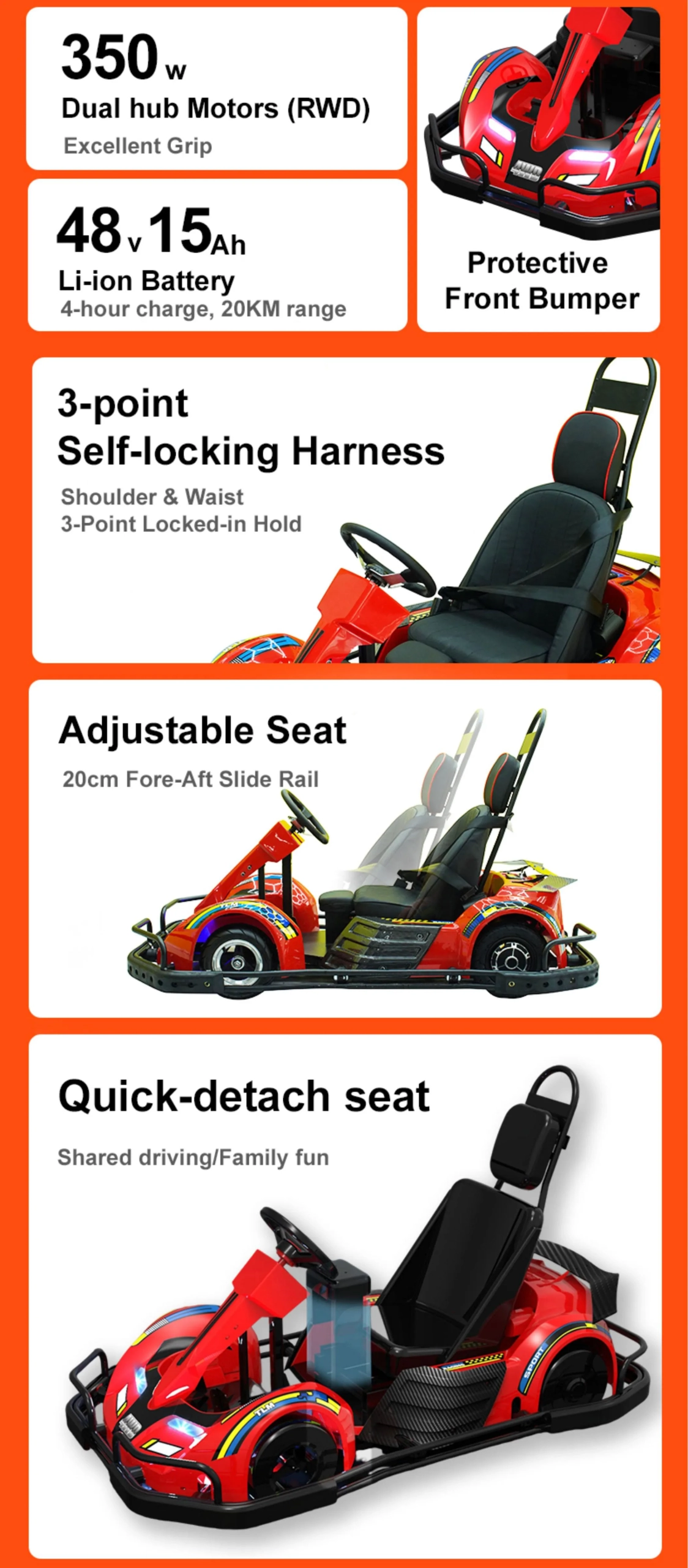

| Motor | 350W × 2 Dual Hub Motors |
| Dimensions (L×W×H) | 1600 × 950 × 970 mm |
| Package Dimensions (L×W×H) | 1710 × 1020 × 880 mm |
| Max payload | 90 kg |
| Net Weight | 80 kg |
| Recommended Age | 8+ years old |
| Top Speed | 35 KM/H (5-speed adjustable) |
| Range | 20 KM |
| Minimum Ground Clearance | 50 mm |
| Applicable Terrain | Hardened road, flat surface, slope ≤ 7° |
| Operating Temperature | 14°F–104°F (−10°C–40°C) |
| Voltage | 48V |
| Battery Capacity | 15Ah |
| Charging Time | 4 hours |
| Battery Type | 48V 15Ah Lithium-ion |
| Front Tires | 90/55-6 Tubeless |
| Rear Tires | 3.50-6 Tubeless |
| Optional Features | Ambient chassis lights, illuminated flagpole |

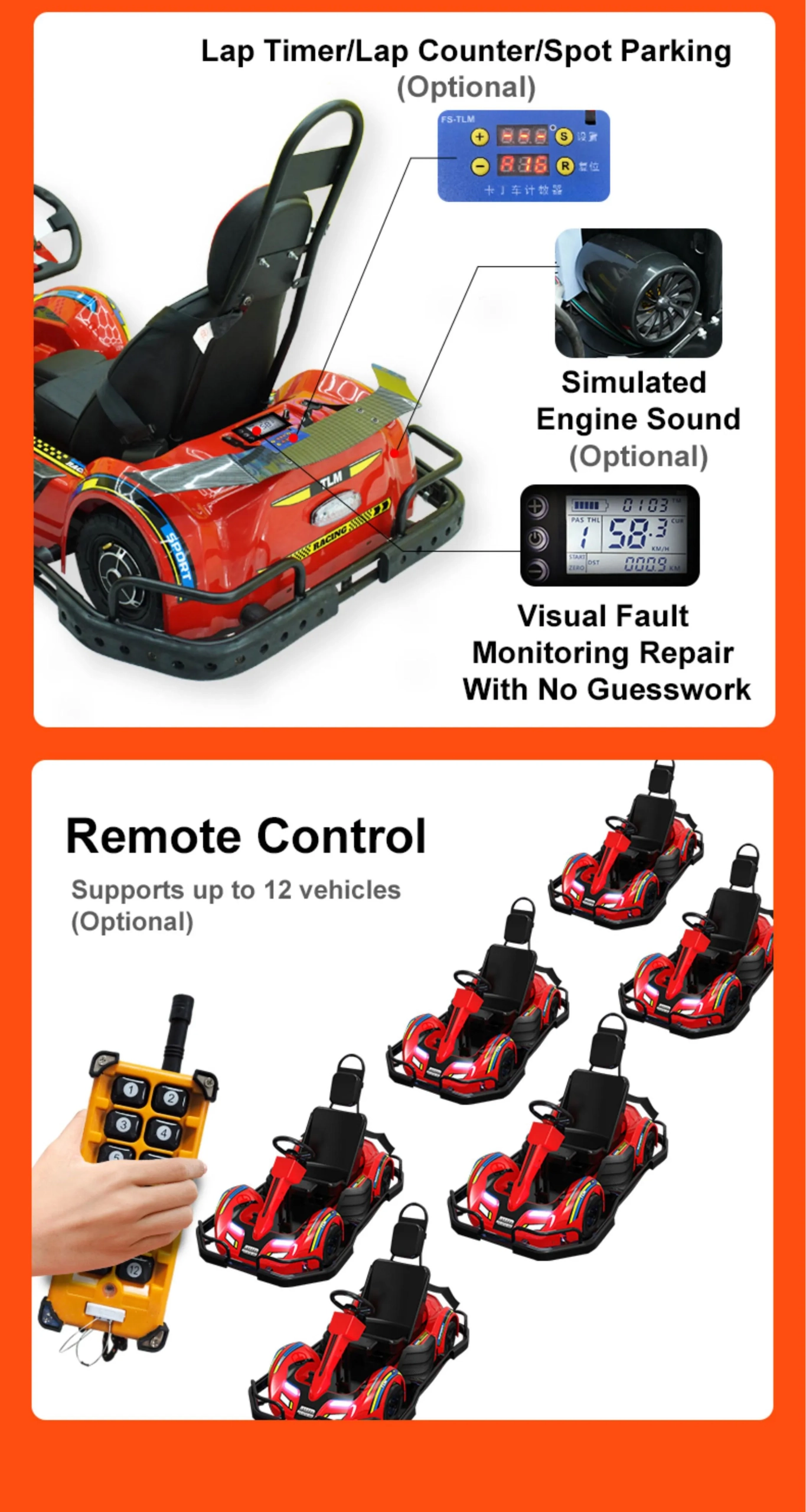

| Status Indicator | Code E00 is the primary parameter used for fault monitoring, where code 00 indicates no fault. Different codes correspond to different types of faults. This system can monitor the operating status of key components such as the throttle, brake, motor, battery, and controller, making after-sales maintenance and inspections more convenient. |
| Brake Type | Mechanical Disc Brake |
| Remote Control Range | 5M |
| Warranty | 1 year on frame, motor, controller; battery replaceable within 3 months if guidelines followed |
| Colors Available | Red and Yellow; customizable |
| Seat Rail | 16 cm adjustable |
| Seatbelt | Three-point self-locking seatbelt |
| Frame Material | 20×2 mm carbon steel round tube with 20 mm high-strength rubber cushioning |
